Xposed-Hook学习

前言

笔者羡慕那些即学即用的佬，自己没这么强的手搓能力。一个一个脚步踏实学习也是旅途的一大乐趣，感谢正己大佬的安卓逆向教学。

环境配置

demoapk: 52pojie
Lsposed
Android Studio
雷电模拟器
XposedBridgeAPI-89.jar
可自己论坛寻找

引言

介绍

Xposed是一款可以在不修改APK的情况下影响程序运行的框架，基于它可以制作出许多功能强大的模块，且在功能不冲突的情况下同时运作。在这个框架下，我们可以编写并加载自己编写的插件APP，实现对目标apk的注入拦截等。

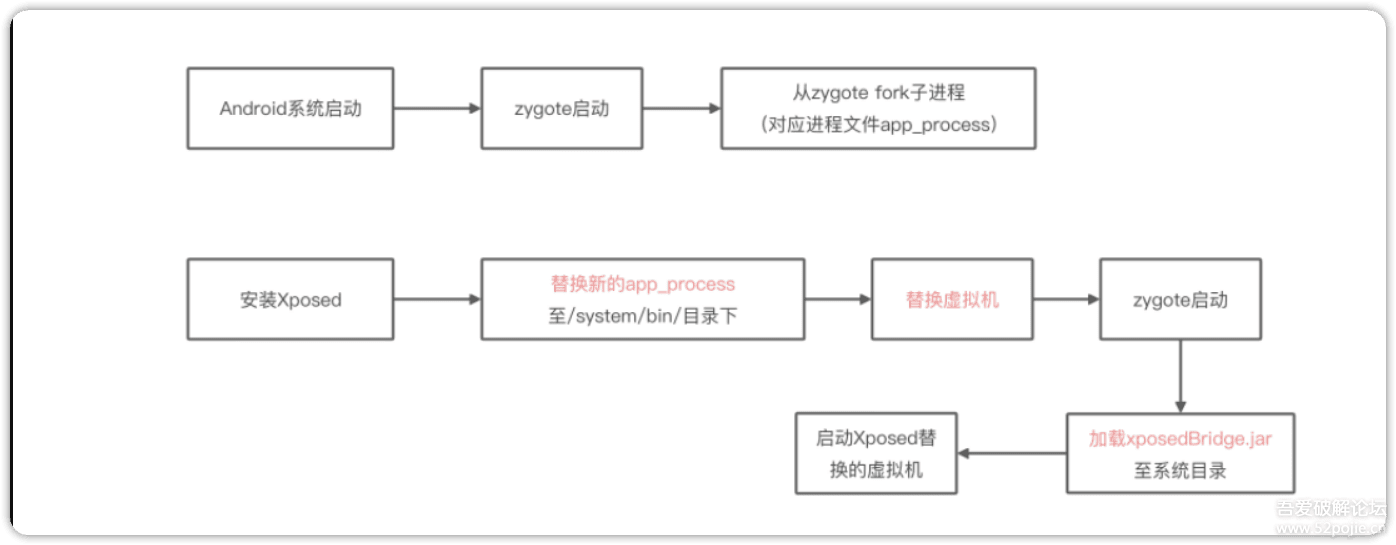

原理

用自己实现的app_process替换掉了系统原本提供的app_process，加载一个额外的jar包，入口从原来的： com.android.internal.osZygoteInit.main()被替换成了： de.robv.android.xposed.XposedBridge.main()，
创建的Zygote进程就变成Hook的Zygote进程了，从而完成对zygote进程及其创建的Dalvik/ART虚拟机的劫持(zytoge注入)

hook

搭建

1.Android Studio创建新项目

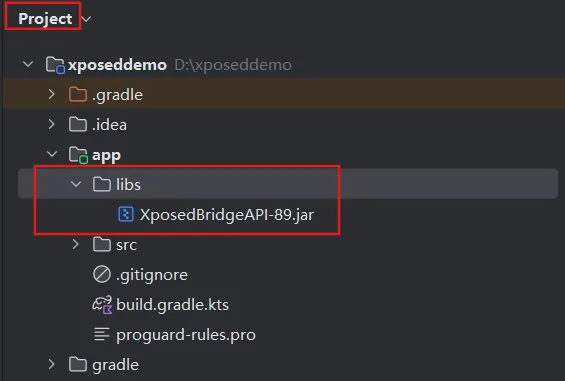

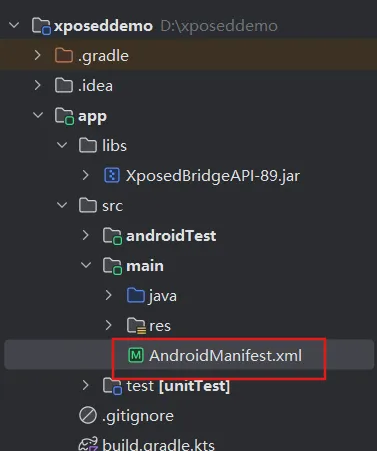

2.将下载的xposedBridgeApi.jar包拖进libs文件夹
3.右击jar包，选择add as library

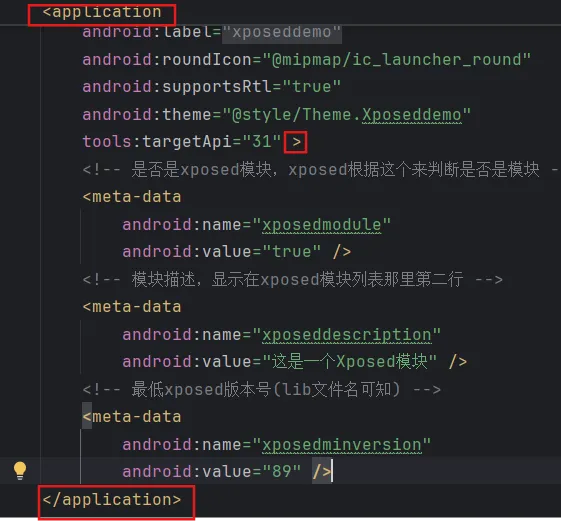

4.修改xml文件配置

1
2
3
4
5
6
7
8
9
10
11
12
<!-- 是否是xposed模块，xposed根据这个来判断是否是模块 -->
<meta-data
  android:name="xposedmodule"
  android:value="true" />
<!-- 模块描述，显示在xposed模块列表那里第二行 -->
<meta-data
  android:name="xposeddescription"
  android:value="这是一个Xposed模块" />
<!-- 最低xposed版本号(lib文件名可知) -->
<meta-data
  android:name="xposedminversion"
  android:value="89" />

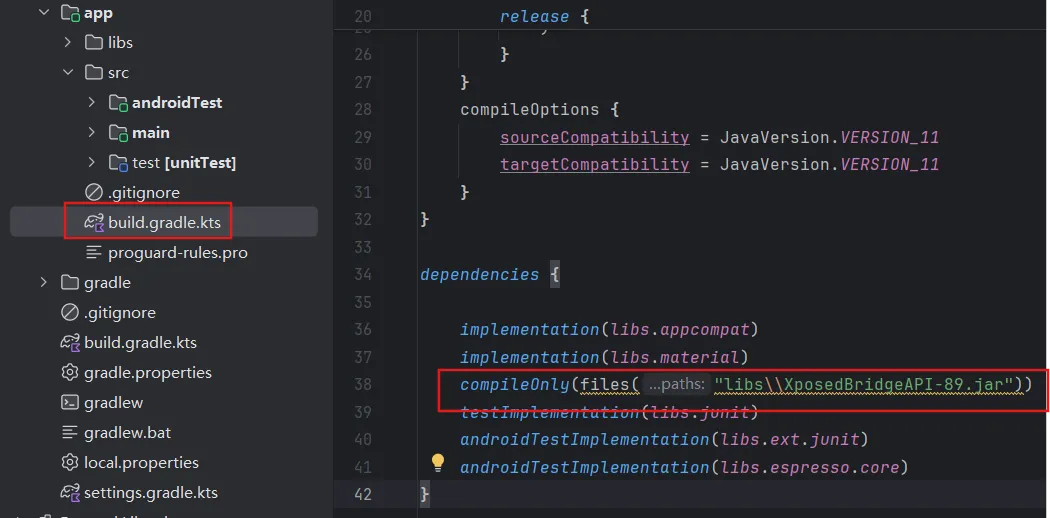

5.修改build.gradle,将此处修改为compileOnly 默认的是implementation

注：\\改/
implementation 使用该方式依赖的库将会参与编译和打包
compileOnly 只在编译时有效，不会参与打包

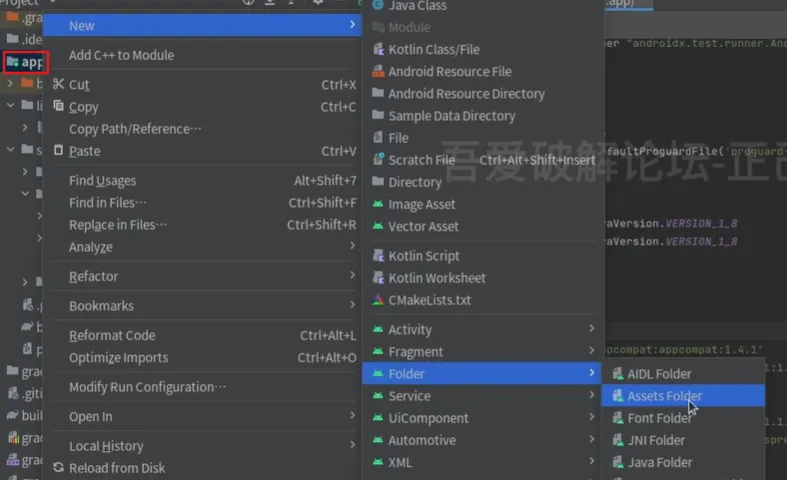

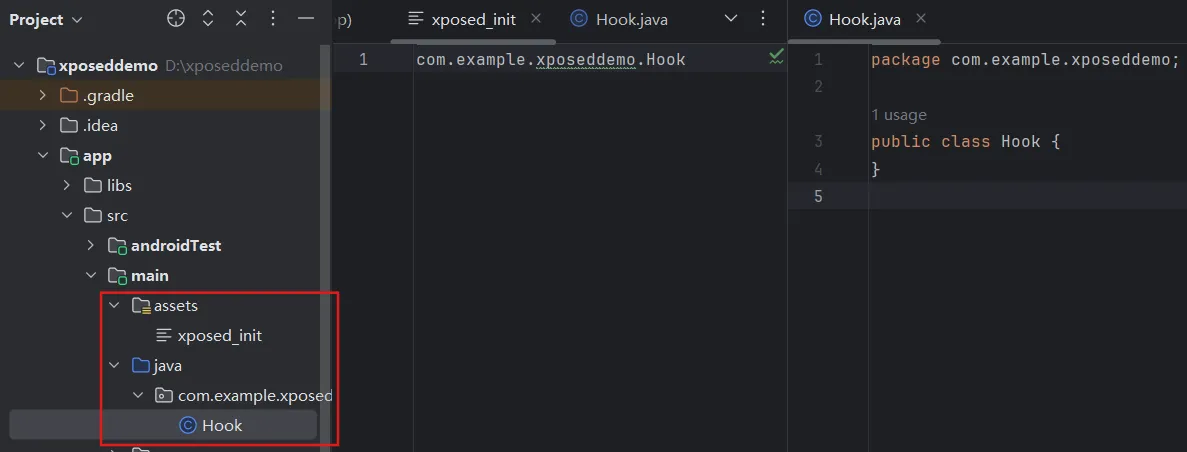

6.新建–>Folder–>Assets Folder，Assets Folder下创建xposed_init文件(不要后缀名):只有一行代码，就是说明入口类


7.新建Hook类，实现IXposedHookLoadPackage接口，然后在handleLoadPackage函数内编写Hook逻辑

1
2
3
4
5
6
7
8
9
10
package com.example.xposeddemo; //前面的导入包
import de.robv.android.xposed.IXposedHookLoadPackage;
import de.robv.android.xposed.callbacks.XC_LoadPackage;

public class Hook implements IXposedHookLoadPackage {
    @Override
    public void handleLoadPackage(XC_LoadPackage.LoadPackageParam loadPackageParam) throws Throwable {

    }
}

继承了IXposedHookLoadPackag便拥有了hook的能力

hook简单方法和返回值

简单方法

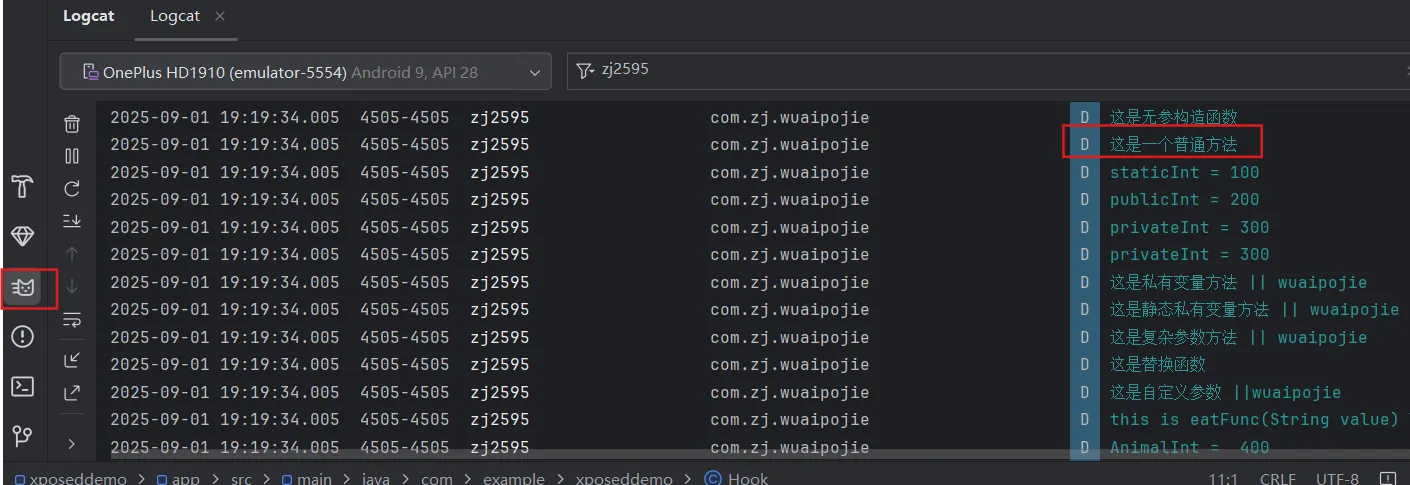

打开模拟器logcat连接，目标：hook所选普通方法

对应jadx分析，右键复制为xposed片段

1
2
3
public final String a(String str) {
        return "这是一个" + str + "方法";
    }

接着在环境配置中的Hook类进行代码编写，缺的库可以alt + Enter快速补全导入

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
package com.example.xposeddemo;
import android.util.Log;

import de.robv.android.xposed.IXposedHookLoadPackage;
import de.robv.android.xposed.XC_MethodHook;
import de.robv.android.xposed.XposedBridge;
import de.robv.android.xposed.XposedHelpers;
import de.robv.android.xposed.callbacks.XC_LoadPackage;

public class Hook implements IXposedHookLoadPackage {
    @Override
    public void handleLoadPackage(XC_LoadPackage.LoadPackageParam loadPackageParam) throws Throwable {
        if(!loadPackageParam.packageName.equals("com.zj.wuaipojie")){
            return;
        }
        XposedHelpers.findAndHookMethod("com.zj.wuaipojie.Demo", loadPackageParam.classLoader, "a", /*java.lang.可省略，根据具体类型定义*/String.class, new XC_MethodHook() {
            @Override
            protected void beforeHookedMethod(MethodHookParam param) throws Throwable {
                super.beforeHookedMethod(param);
                XposedBridge.log(param.args[0].toString()); //lsposed软件日志查看
                Log.e("zj2595",param.args[0].toString()); //android自带Log
                        //d-debug e-error
                String a = "pt";
                param.args[0] = a;
                Log.e("zj2595",param.args[0].toString());
            }

            @Override
            protected void afterHookedMethod(MethodHookParam param) throws Throwable {
                super.afterHookedMethod(param);
            }
        });
    }
}

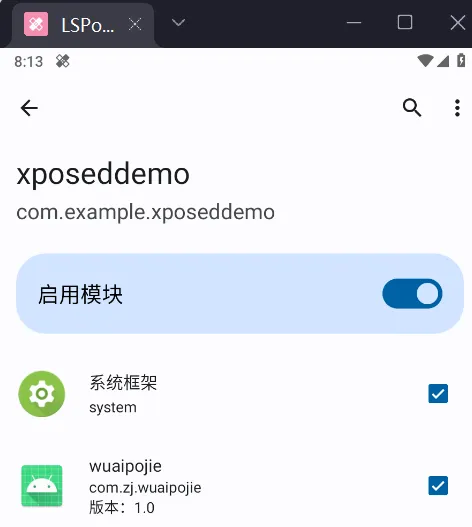

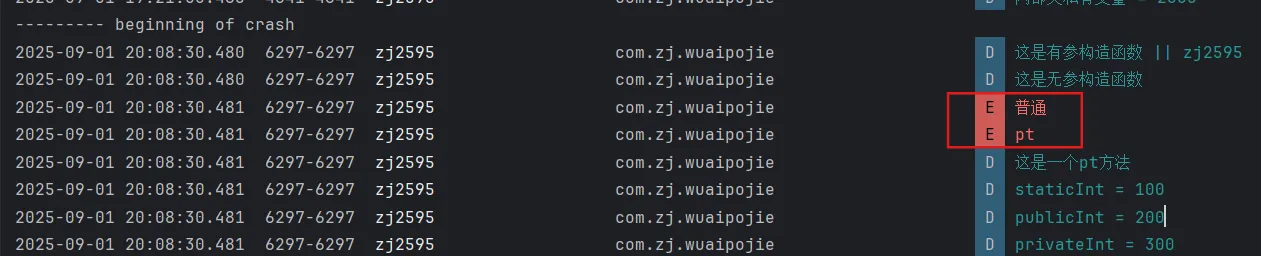

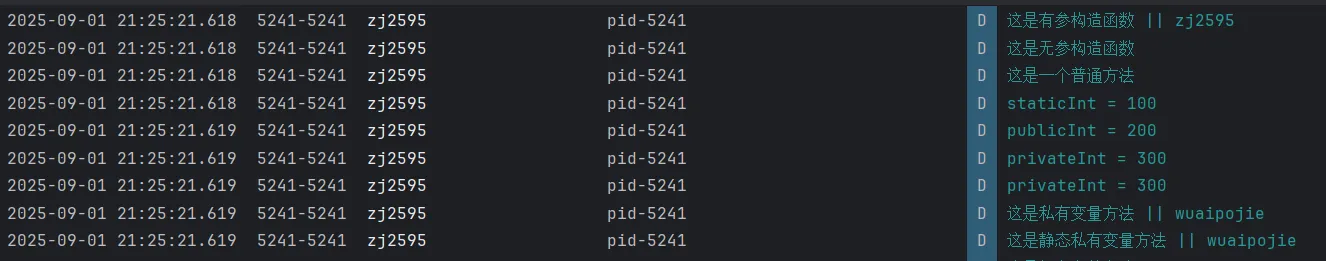

点击运行，之后Lsposed点击加载的xposeddemo，系统模块以及wuaipojie权限开下写入
无日志显示重启再打开wupojie.apk

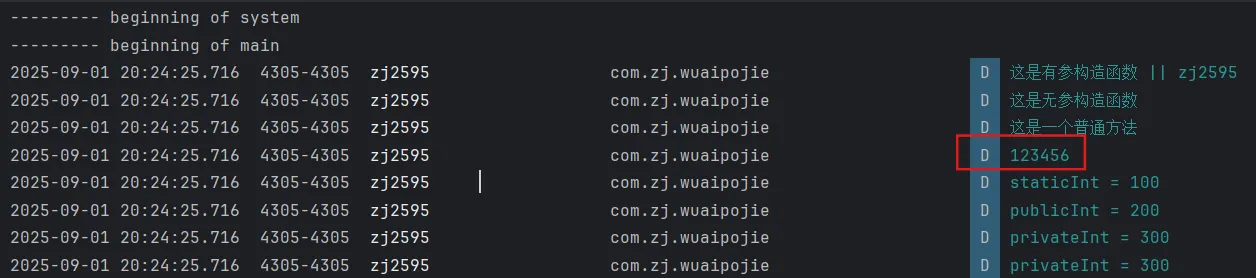

返回值

1
2
3
4
protected void afterHookedMethod(MethodHookParam param) throws Throwable {
                super.afterHookedMethod(param);
                Log.d("zj2595",param.getResult().toString());
                param.setResult("123456");

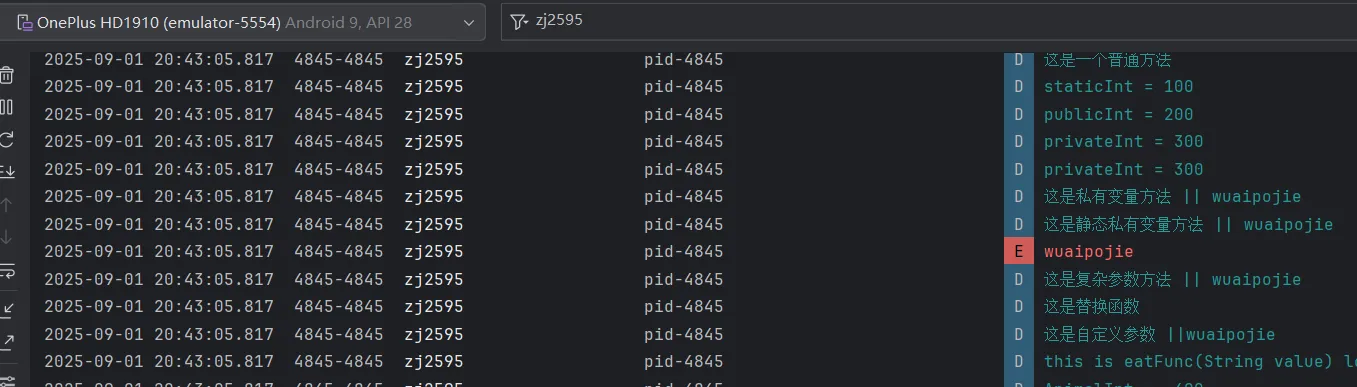

复杂&自定义

1
2
3
private final void complexParameterFunc(String str, HashMap<Object, Object> map) {
        Log.d(Tag, "这是复杂参数方法 || " + str);
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
package com.example.xposeddemo;
import android.util.Log;

import de.robv.android.xposed.IXposedHookLoadPackage;
import de.robv.android.xposed.XC_MethodHook;
import de.robv.android.xposed.XposedBridge;
import de.robv.android.xposed.XposedHelpers;
import de.robv.android.xposed.callbacks.XC_LoadPackage;

public class Hook implements IXposedHookLoadPackage {
    @Override
    public void handleLoadPackage(XC_LoadPackage.LoadPackageParam loadPackageParam) throws Throwable {
        if(!loadPackageParam.packageName.equals("com.zj.wuaipojie")){
            return;
        }
//        XposedHelpers.findAndHookMethod("com.zj.wuaipojie.Demo", loadPackageParam.classLoader, "a", /*java.lang.可省略，根据具体类型定义*/String.class, new XC_MethodHook() {
//            @Override
//            protected void beforeHookedMethod(MethodHookParam param) throws Throwable {
//                super.beforeHookedMethod(param);
////                XposedBridge.log(param.args[0].toString()); //lsposed软件日志查看
////                Log.d("zj2595",param.args[0].toString()); //android自带Log
////                        //d-debug e-error
////                String a = "pt";
////                param.args[0] = a;
////                Log.d("zj2595",param.args[0].toString());
//            }
//
//            @Override
//            protected void afterHookedMethod(MethodHookParam param) throws Throwable {
//                super.afterHookedMethod(param);
////                Log.d("zj2595",param.getResult().toString());
////                param.setResult("123456");
//
//            }
//        });
        Class a = loadPackageParam.classLoader.loadClass("com.zj.wuaipojie.Demo");
        XposedBridge.hookAllMethods(a, "complexParameterFunc", new XC_MethodHook() {
            @Override
            protected void beforeHookedMethod(MethodHookParam param) throws Throwable {
                super.beforeHookedMethod(param);
                Log.e("zj2595",param.args[0].toString());
            }
        });
    }
}

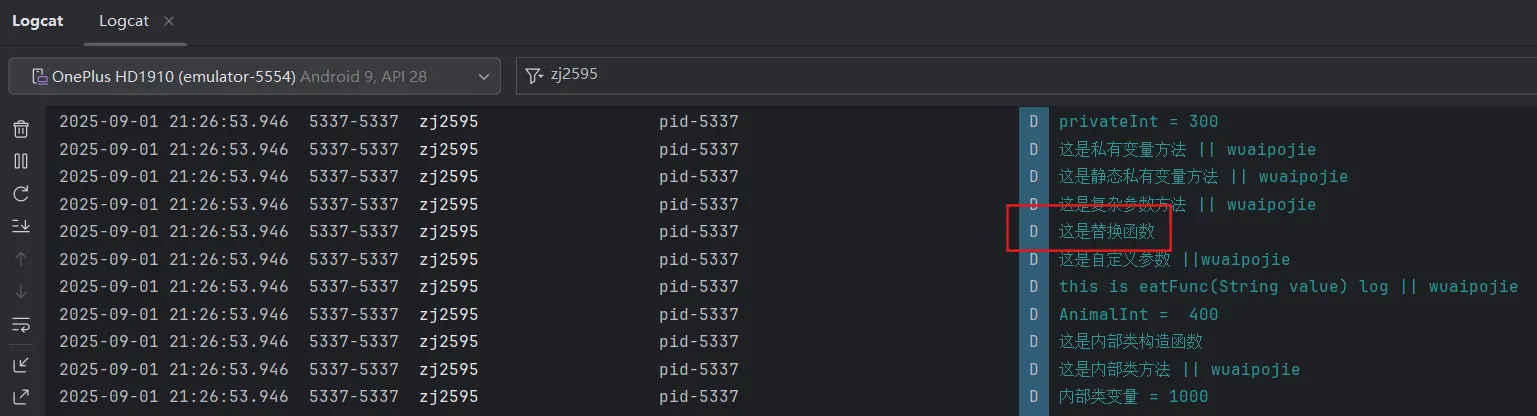

替换函数

1
2
3
private final void repleaceFunc() {
        Log.d(Tag, "这是替换函数");
    }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
package com.example.xposeddemo;
import android.util.Log;

import de.robv.android.xposed.IXposedHookLoadPackage;
import de.robv.android.xposed.XC_MethodHook;
import de.robv.android.xposed.XC_MethodReplacement;
import de.robv.android.xposed.XposedBridge;
import de.robv.android.xposed.XposedHelpers;
import de.robv.android.xposed.callbacks.XC_LoadPackage;

public class Hook implements IXposedHookLoadPackage {
    @Override
    public void handleLoadPackage(XC_LoadPackage.LoadPackageParam loadPackageParam) throws Throwable {
        if (!loadPackageParam.packageName.equals("com.zj.wuaipojie")) {
            return;
        }
        Class a = loadPackageParam.classLoader.loadClass("com.zj.wuaipojie.Demo");
        XposedBridge.hookAllMethods(a, "repleaceFunc", new XC_MethodReplacement() {
            @Override
            protected Object replaceHookedMethod(MethodHookParam methodHookParam) throws Throwable {
                return "";
            }
        });

    }
}


hook加固

借助application attach实现，有点像是hookmethod的二次嵌套

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
package com.example.xposeddemo;

import android.app.Application;
import android.content.Context;
import de.robv.android.xposed.IXposedHookLoadPackage;
import de.robv.android.xposed.XC_MethodHook;
import de.robv.android.xposed.XposedHelpers;
import de.robv.android.xposed.callbacks.XC_LoadPackage;

public class Hook implements IXposedHookLoadPackage {
    @Override
    public void handleLoadPackage(XC_LoadPackage.LoadPackageParam loadPackageParam) throws Throwable {
        if (!loadPackageParam.packageName.equals("com.zj.wuaipojie")) {
            return;
        }
        XposedHelpers.findAndHookMethod(Application.class, "attach", Context.class, new XC_MethodHook() {
            @Override
            protected void afterHookedMethod(MethodHookParam param) throws Throwable {
                Context context = (Context) param.args[0];
                ClassLoader classLoader = context.getClassLoader();
                //hook逻辑在这里面写
                XposedHelpers.findAndHookMethod("com.zj.wuaipojie.Demo", classLoader, "a", String.class, new XC_MethodHook() {
                    @Override
                    protected void beforeHookedMethod(MethodHookParam param) throws Throwable {
                        super.beforeHookedMethod(param);
                        //log.e();
                    }

                    @Override
                    protected void afterHookedMethod(MethodHookParam param) throws Throwable {
                        super.afterHookedMethod(param);
                        //log.e();
                    }
                });
            }
        });
    }
}
